As a mild winter turns into an unusually nice spring here in Beaverton (last week we had multiple days with clear skies and highs in the upper 70s °F), a young ham's thoughts turn to portable activations, Field Day, SOTA, and the like. I've been looking forward to this summer for the opportunity to take the CC1 out in the field, but I may not get to be quite as adventurous as I hoped. Last winter, I slipped in a wet patch on the concrete in the garage and hurt my knee. As a typical guy, I didn't go to the doctor to have it checked out, I decided to "walk it off". It did heal, but not completely. So I finally gave in and saw my doctor about it a few weeks ago. She strongly suspects a torn meniscus, and ordered an MRI to confirm it. Unsurprisingly, my insurance company denied coverage on the MRI, instead expecting me to do a bunch of physical therapy based on at best a guess on what the problem is. Coming from a technical background such as mine, this boggles my mind. When you have a problem and you have the tools to make a measurement, you make the measurement to see what's wrong, not just take a course of action based on a guess! I understand that money is the driving factor behind this decision, but it still seems like a waste of resources for both myself and the insurance company. Not to mention that I don't have the faith in the efficacy of physical therapy that consensus medicine does.

So now I have to decide whether to shell out beaucoup bucks on physical therapy that probably won't do anything other than siphon money from our family to their coffers. And if that fails to miraculously heal the non-specific "knee pain" referred to by the insurance company, then I guess I get the privilege of paying for the MRI that I should have had in the first place.

I'm completely fed up with politics, so I have no desire for a political battle in my comments. I'm quite aware of the history of employer-provided health insurance in the US, and the effect of government distortions in the medical marketplace. There's plenty of blame to be handed out all around, so let's just leave it at that.

Anyway, I may not get to do any SOTA summits this year (except for perhaps a super-easy one such as Cooper Mountain right on the outskirts of Beaverton), but hopefully I can at least get out with the CC1 for portable ops to the park or while camping.

Speaking of the CC1, it's at a bit of a lull in its development right now. I'm waiting for all of the beta builders to complete their construction so I can be sure that I have all of the major hardware bugs worked out (which looks tentatively promising right now). I still have quite a bit of firmware coding to work on, then I'll be ready for the next (and hopefully last) PCB spin. With any luck, that should come in about 8-10 weeks.

In the meantime, I want to work on some side projects, and perhaps some opportunities to raise more capital to fund CC1 development. In that regard, I've been looking at a neat part recently. It's a MEMS VCXO from SiTime called the SiT3808. What's cool about this part is that it has linear voltage tuning, so that you don't have the uneven tuning response like you would from a varactor-tuned VCXO. The phase noise on the spec sheet also looks very good. I ordered some samples for 7.030 MHz and 28.060 MHz and breadboarded them to test the frequency stability. It was nothing short of amazing. The 7.030 MHz part had a long term drift of 5 Hz in 1.5 hours. The 28.060 MHz part drifted only about 20 Hz in 2 hours. That's pretty spectacular for CW use.

Since the 28 MHz part was so stable, I created a QRP transmitter for it by adding on a keying circuit and a couple of BD139 amplifiers. It outputs a very clean and stable 2 watt signal and has a tuning range of about 20 kHz. I also was fairly easily able to create a TX offset circuit, so that the transmitter can be paired with a direct conversion receiver (which I plan to do soon). Since tuning is linear, the offset is the same anywhere in the tuning range, unlike a typical varactor-tuned crystal oscillator.

I've been thinking about a way to introduce these parts to the ham community, since I don't believe that I've seen them mentioned by any homebrewers or used in any kits. Last week on the qrp-tech listserv, K7QO proposed a group build of the venerable NE602/LM386 direct conversion receiver (this one from chapter 1 in Experimental Methods in RF Design). Since this design is so well known, it seems like a "remix" of this design using the SiT3808 as the local oscillator might be a fun way to spread the word about the product. I breadboarded a version with the 7.030 MHz SiT3808 sample, which you can see below (the SiT3808 is in the upper-right corner, and it obscured by the tuning pot wiring).

NE602/LM386 Prototype Receiver with SiT3808

NE602/LM386 Prototype Receiver with SiT3808

It works exactly as expected. Wide open band signals directly dumped down to baseband, and a nice, stable LO. This particular SiT3808 part number only tunes about 4 kHz, but I will be able to get parts with a greater tuning range. I'm consulting with SiTime right now about bulk pricing, and hopefully I'll be able to do a kit run of at least 100 of these bad boys in the near future. Let me know in the comments if this is something that may interest you.

So that's my big rant for the day. Stay tuned for further updates on all of these projects in the near future.

PJ2/K8ND

The Thrill of QRP DX

5 Replies

Last night after the rest of the family was in bed, I was hacking on the CC1 firmware to add the BFO calibration routine so that I could get an accurate readout of my receive frequency. After successfully completing that task at the late hour of 0130, I decided to cruise 40 meters to see what was going on. Normally the best time for 40 meter DX at my QTH seems to be from about 0200 or so until sunrise, so I thought I might catch something.

Scanning below 7.030 MHz, I came across a very loud station. I figured it was somebody in CONUS, but decided to listen for an ID just in case. It actually turned out to be PJ2/K8ND in Curaçao. Not exactly rare DX, but it's still quite a ways from my QTH and it's a new one for me. So I figured I would take a crack at it with the CC1. Long story short, I set the CC1 in XIT mode and after an hour of trying, my 3 watt signal finally managed to crack the JA-wall. I was pretty excited! Not exactly a heroic snag in the annals of DXing, but it was a good one for me. My single HF antenna is a ZS6BKW only up about 30 feet, so busting a 40 meter pileup to a station 6000 km away made my night. My first DX contact on the CC1! Even better, I woke up to find that the FB op uploaded his log to LoTW immediately, and I've got +1 to my DXCC count.

QRP is fun!

CC1 #1

18 Replies

A brief post to show you the CC1 prototype, now inside of its aluminum enclosure. This is the actual enclosure that will be used for production, but I will have the end caps custom cut and silkscreened, so you won't have to do it yourself. Pardon my questionable metalworking skills, and please note the the production tuning knob will be different (a bit smaller so as to not interfere with the LEDs). At least this will give you some idea of what the final product will look like. The dimensions of the enclosure is 70 x 100 x 29 mm (or 2.75 x 3.93 x 1.14 inches). The first photo shows a size comparison with a standard deck of cards. The weight is 190 grams (6.7 oz).

After the latest circuit tweaks, everything is looking very good with this beta test. I will have more news for the beta testers in the near future. Exciting!

CC1-40 In Enclosure

CC1-40 In Enclosure

CC1-40 Front

CC1-40 Front

CC1-40 Rear

CC1-40 Rear

First RF

12 Replies
CC1-40 Prototype

CC1-40 Prototype

Two days ago, I received my pack of 10 CC1 prototype PCBs from Seeed Studio. The excitement was too much, so I immediately started building the first CC1 prototype as soon as my wife got home from work. Not surprisingly, I didn't go to bed until I completed the build, sometime around 3 AM. I knew it was futile to even try to sleep, as I'd just lie in bed wondering if I had messed something up with the circuit. The radio seemed to pass all of the basic checks early that morning, but had a few oddities that needed to be worked out.

Yesterday, I was able to tweak some component values and got almost everything in line with my Manhattan-built prototype. I could hear a good rush of band noise as the antenna was connected, signals were coming in, and there was a stable 3 W CW output from the transmitter. Everything was looking great, but by the time the radio was ready to go QRV, 40 meters was closed and I was dead tired anyway.

NT7S CC1 Beta Test QSL

NT7S CC1 Beta Test QSL

Tonight, I tried to make a first QSO with AA7EE, but 40 meters had already gone long by the time I was able to make it to the radio at 6 PM, and Oakland was well out of the skip zone. There were a lot of signals from Rockies and east on the band, so I cruised a bit looking for a CQ. No luck finding anybody CQing, so I found a clear spot just above the QRP watering hole and called CQ with the CC1 keyer memory. Right off the bat, I got a call from WA0JLY! We gave each other 559 reports, but he actually came up to 579 by the end of the QSO. It was a very short QSO, as just as we exchanged reports, I was called away to help with our 10 month old son Eli. So I apologize Denny for the cutting the QSO short and for my shaky fist! Earlier today, I made some special QSL cards to commemorate the occasion and WA0JLY will get the first one. I do plan on getting more on-air time with the CC1 over the next few months, something that I've set aside far too much while I've been doing design.

So the initial verdict for this CC1 beta test is looking good. I will be getting in touch with the original beta testers soon and soon after that will contact those who requested to be in on the next beta (if you are one of those people and you don't hear from me soon, feel free to contact me). As I've been saying recently, I'm cautiously optimistic about this board spin. I hope that I will be able to deliver a good product to my beta testers that has all of the original bugs eliminated.

Edit

I've had a lot of people ask for details about the CC1 and I forgot that it has been a while since I've last reviewed the details about the rig on the blog. So here's a quick list of specs. Please keep in mind that this is strictly preliminary and subject to change for the release version.

  • Monoband CW QRP transceiver kit
  • DDS VFO (AD9834), full band coverage
  • Mostly SMT construction (0805 resistor/capacitors)
  • Initial available bands: 40, 30, 20, 15 (probably will add 80 and 17 if there is demand)
  • ATmega328P microcontroller with built-in keyer and straight key mode, audio frequency annunciation, RIT/XIT, voltage supply readout, breakout headers to UART, I2C, ADC, GPS port for WSPR transmission (and hopefully APRS over PSK63)
  • TX output power: 3 W
  • RX current: ~40 mA
  • TX current (13.7 VDC, 3 W): ~370 mA
  • MDS: -125 dBm
  • IF rejection: 86 dB
  • Image rejection: 95 dB
  • Two-tone, 3rd order IMD dynamic range: 75 dB
  • PCB dimensions: 70 x 99 mm
  • Custom matching aluminum enclosure measuring 70 x 100 x 25 mm will be included

HNY

2 Replies

Yes, a belated Happy New Year greetings! It's hard to believe that 2013 is already well under way. I figured it was about time to give you a quick update on what's going on in the shack right now.

First up is the discrete component grabber receiver for 14.141 MHz that I prototyped to be paired with the OpenBeaconMini project. The receiver itself consists of a roughly 2 kHz wide crystal filter on the front end, feeding into a single-balanced diode ring mixer, which drives an AF amp using 2N4401 and 2N4403 transistors. Because I'm not able to put up a proper outdoor antenna for the grabber right now, I decided to put the VE7BPO cascode active antenna on it instead. It seems to work well, but I don't know for sure because there are basically no signals on this part of the band. I intended to use my Raspberry Pi with the receiver as a grabber, but I had no luck getting either LOPORA or QRSSVD to work properly and reliably. It may just be asking too much of the poor beast. So I'm going to try to appropriate another PC in order to get the grabber receiver QRV so that on-air testing of OpenBeaconMini can begin in earnest.

Discrete component monitor RX for 14.141 MHz

Discrete component monitor RX for 14.141 MHz

Next, I wanted to give you a very brief overview of my most recent purchase for the lab: a Rigol DS1022U arbitrary waveform generator. As far as I can tell, this appears to be pretty much the same as the DS1022A model that is sold in the US. But being a typical ham, I wanted to save a few dollars, so I purchased it off of eBay from seller who says he is an authorized Rigol dealer.

Rigol DG1022U Arbitrary Waveform Generator

Rigol DG1022U Arbitrary Waveform Generator

The DG1022[U|A] has two channels that can output a sine wave up to 25 MHz in 1 mHz (as in millihertz) steps. It can also provide square, ramp, pulse, noise, and arbitrary waveforms at lesser frequencies. It can modulate the waveform in a variety of ways, including AM, FM, PM, PWM, and FSK. It can, of course, also do sweeps of various parameters. The output amplitude into 50 Ω ranges from 10 Vpp on Channel 1 or 3 Vpp on Channel 2 down to 2 mVpp on both channels (or -50 dBm). The shielding on this AWG seems to be excellent. Using my HP 355C/355D attenuator combo, I can get a signal down to about -140 dBm (disclaimer: not a scientific measurement, made using my ear as a detector and listening on my IC-718). The dual outputs makes it very useful for a variety of two-tone receiver measurements, one of the big reasons driving my purchase. The Channel 2 output also doubles as a 200 MHz frequency counter input. Paired with the USB connectivity of the device (it seems to enumerate as a usbtmc device), that will be extremely handy for measuring oscillator drift. The DG1022 can also link the two channels together and give them a specific phase difference, as you can see below. This will make it very handy as a I/Q LO when I want to experiment with phasing and SDR rigs.

I/Q Output from DG1022U

So far, I've been very pleased with my purchase. I don't feel like I've had it or used it long enough to give you a full review, but I thought that this preview would at least be a bit helpful for those thinking about using it. One of my goals for the new year is to do a much better job of characterizing everything that I build. Since I intend to start selling transceivers in the near future, it's doubly-important that I can make accurate measurements of my products so that I can properly state their specifications. To this end, I've decided to sell off a bunch of my unused or replaceable test equipment (please take a look at the for sale posting) in order to finance the new, calibrated test gear. Next up on my purchase list is a Rigol DSA815TG spectrum analyzer (just reviewed favorably in the February 2013 QST), but that's going to require the sale of everything on that page!

Finally, I've got the CC1 prototype PCBs on their way from Seeed Studio right now. It looks like they just cleared customs in the US, so hopefully they will be in my hands in the next few days. With any luck, I'll have the first one built by the weekend and will be well on the way to a new beta test. I'll put up a quick post to show off the PCBs, and when the first prototype unit is completed. Stay tuned!

Field Day 2012

Leave a reply

OTVARC Field Day 2012 at Stub Stewart State Park

Even though I've been insanely busy with home life and running Etherkit, I felt like I needed to get out and do a bit of operating to get back in touch with that aspect of amateur radio. In the past few years, Dave W8NF has invited me to come up to the OTVARC Field Day site at Stub Stewart State Park, but I've avoided it due to the fact that late June is usually the time of year when my grass allergies peak here in western Oregon. Fortunately, this year has been a bit of a La Niña year, so it has been unusually wet and mild, which means that the pollen is under good control after a nice rain. A few days before Field Day this year, and my allergies had been pretty mild, so I decided to invite myself up to the public site to check it out and maybe do a little bit of operating.

I arrived at the park at about 4 PM on Saturday. As you can see from the photo above, the weather probably wasn't to the liking of most people, but it was perfect for me: dry, having just previously rained. OTVARC had four operating positions set up: one CW/digital tent (two K3s), one phone tent (two IC-756IIIs), one VHF (where the above photo was taken), and the GOTA station in the RV you can see in the center of the photo. It's hard to tell from the photo, but the antenna farm ran in a straight line from where I was standing down towards the pavilion in the background. There were 40 foot masts roughly equally spaced out with fixed beams on them, then wire antennas for the lower bands strung between the masts.

After a bit of chatting with W8NF and some introductions to club officers and members, I partook in the grilled hamburgers which were offered (wasn't going to eat OTVARCs food, but thanks for the invite!) and then Dave and I sat down in the phone tent to try to work some 20 meter SSB. I was at the logging PC and Dave was manning the mic (each phone station was equipped with Dave's brilliant Logiklipper, natch). We didn't have much success for some reason on 20 phone, probably due to the antenna we were stuck with (the G5RV, if I remember correctly). I ended up moving over to the other phone station, which was on 15 meters. I actually had a decent run of search & pounce operation, for a non-contester like myself. I wanted to try to park on a frequency and CQ, but I noticed it was 8 PM by this time, so I needed to get back home.

Prototype SSB Rig

Both before I left for Stub Stewart and after I returned, I also used Field Day as an opportunity to test out the "mainframe" of a new SSB transceiver design I've been working on (meaning the RF stages, minus the microcontroller/DDS/LED frequency display). A breadboarded DDS-60 was used as the temporary VFO for the radio, and I connected the whole works up to battery power to work as 1E OR from my own station. This iteration of the radio is monoband (20 meters on this unit) and QRP (power output is about 7 watts max with a IRFIZ16G final), so I knew I would be a little guppy in a big pond, but figured it was worth a try just to see that it was working properly. I actually ended up doing better than I expected. In about 1.5 hours of casual search & pounce operation, I was able to make 11 QSOs with stations in the sections NE, ID, AK, PAC (x3!), KS, AZ, and NM. The PAC stations were all in Hawaii and were booming in easily 20 to 60 dB over S9. Two of those three PAC QSOs were snagged on first call. It's a little spooky having such an easy QSO only using 6-7 watts SSB over such a long distance. Yes, all of the heavy lifting credit goes to the other station, but QRP SSB can work if you take care to know your propagation and try to work the stations which are loudest. Given a QTH from a peak (such as a SOTA activation) and a decent antenna, I don't doubt that it could be quite effective.

So the rig seems to work, and I don't even have a name for it yet, but it's shaping up quite nicely. The microcontroller/DDS/LED module is nearly complete, then I'm going to package the rig in a WA4MNT-style copper clad chassis so that I can take the rig with me to Salmoncon in a few weeks. With any luck, beta testing will begin in no more than two months, and hopefully a quick entry to the market after that. On a side note, as much as it pained me to set aside the CC-Series to develop something else, I think it was vitally important for me to do so. I was too stuck in a rut with the CC-Series design and needed a mental breakout to something different. I've learned some good circuit design ideas from this radio, which should translate into vast improvements in the next iteration of the CC-Series. I do intend to give my CC-Series beta testers a worthy radio in this next round of testing.

Dayton Or Bust

3 Replies

I've got another grab-bag of miscellaneous news for this post, but I'm going to lead off with the big one: I'm going to be a presenter at the world's preeminent QRP convention: Four Days In May 2012. The tentative topic for my presentation will be about the free and open source tools that I use in the development of my products and how you can put them to use in your own homebrewing endeavors. This will be my first time speaking to an audience larger than about 25 people, so I hope that I can provide an entertaining and informative talk at such a prestigious event. I'll be speaking in front of a lot of people who I consider to be much more capable than I and some who I consider my virtual Elmers. It is my sincere desire to not disappoint.

I am very excited for the opportunity to go back to Dayton so soon after my last trip. I really didn't expect to have the chance to go again for quite a few more years, so the ability to get back to the convention after only two years is a great blessing. I owe a great debt of gratitude to Jennifer, who didn't hesitate to encourage me to go, even though she will be dealing with a 2-month-old baby and a near 2-year-old by herself for a few days while I'm away.

In other news, I feel like I've gotten over the steep part of the learning curve with Kicad, having successfully made PCBs for my little Twin-T code practice oscillator. You can see a short video of it in action above. The output level is suitable for modern, sensitive headphones, but if you want room-filling audio such as in my video, you'll need to connect it to an amplified speaker. The PCB is designed to fit in the ubiquitous Altoids tin, with room to spare for a 9 V battery.  I expect that this will eventually make it to my stable of products, but it's low priority considering the long delay on the CC-Series and the need to get it ready to sell by May. If you are really interested in the project, write a comment or shoot me an email (milldrum at gmail) and I'll see if I can't work something out to get you hooked up with a kit early.

The OpenBeacon project is cruising right along. Now that I know that I can successfully make a PCB with Kicad, I've taken the plunge and decided to migrate all of my workflow there (I think this will include the next board spin of CC-Series, since there are so many changes to be made there will be no real advantage to staying with TinyCAD/FreePCB). The OpenBeacon PCB design is nearing completion. Once I get a shipment from Mouser in the next few days to verify that my newly-created PCB footprints match the actual physical components, I'll be ready to submit my CAM files to Seeed Studio for prototype boards. With any luck, I'll have them back within about two weeks. (Protip: it's worth taking the time to place your component against a 1:1 printout of your Gerber to make sure it will fit. Don't ask me how I know this.)

Once those CAM files are off to China, it will be full-bore on the CC-Series. With the deadline of mid-May staring me down hard, I figure I will have to get those CAM files out within no more than three weeks. That will put me into mid-March for getting the PCBs back, which will give a pretty slim margin of time to beta test and prepare the kit for final sale. Going to be pulling some long, late-night shifts...that I can already see.

I've also got a few more projects in the pipeline for after FDIM and the deployment of CC-Series and OpenBeacon. The first is a fairly simple and inexpensive VXO DC transceiver that I hope to initially kit for the high bands of 10, 12, and 15 meters. It uses a topology which is somewhat unique. The other is an extrapolation of the receiver circuitry of this rig to use as a dedicated QRSS grabber receiver. But I may be getting a bit ahead of myself. Let's get this CC-Series launched, then see where the winds take us.

Catching Up With Etherkit

4 Replies

The year is not starting out as well as I had hoped. Back during the beta test of the CC-20 I had set a goal to complete my revisions and be ready to sell production kits by 1 January 2012. Obviously that date has come and gone and I'm still not on the market. A few circumstances have contributed to this situation. First, the days available for me to work exclusively on Etherkit has been cut from 4 per week to less than 2 due to family member's work schedules being changed. Second, it took me longer than expected to tackle the bugs in the CC-20 beta; the worst being the high number of spurs in the receiver.

So where does thing sit right now? The next CC-20 board revision is just about ready to be implemented. I've had to move to a DDS with a higher master clock frequency and change out the product detector from a dual-gate MOSFET to a diode-ring mixer. One advantage of the new DDS is that I can greatly simplify the transmitter circuitry, but this will require the trade-off of a fairly significant revision of the PCB.

I have been getting my PCBs manufactured in China, and right now many of the manufacturing firms (my board house included) are shutting down for two weeks to observe the Spring Festival (Chinese New Year). So even if I do send my Gerber files to the board house, they probably won't be back for at least a month. In the meantime, I've decided to work on a side project that's been rattling around in my head for a while: a QRSS/CW/Feld Hell/Etc. beacon. Also, in response to a lot of positive response that I have received from my simple Twin-T code practice oscillator, I also spent a few days revising the circuit to make the output a bit more robust and then created a PCB for the circuit in Kicad so I could transition my EDA to an actively developed software package (I was using TinyCAD/FreePCB previously, which seems to be pretty much a dead end).

OpenBeacon Prototype

OpenBeacon Prototype

So allow me to tell you a bit more about the beacon project. For now, I've decided to dub it OpenBeacon (I know, so very original). But there is a decent reason for the name. Much like the CC-Series, I intend for this project to fill a niche in the market that is very empty right now. The list of notable open source/open hardware kits out in the market is very small. The only one I think of off the top of my head is OpenQRP. As far as QRSS kits, I'm only aware of the one from the talented Hans Summers. My goal for this project is to provide a kit that is open, extensible, relatively inexpensive and simple, and ripe for user modification. Let me tell you a bit more about the project specs and how they fit into this goal.

Let's start with the bare hardware. The transmitter is a standard, vanilla Colpitts oscillator followed by an emitter follower buffer, which feeds a class A PA with fully adjustable output power (provided by a very cheap and cheerful part, the BD139). At full-bore with 13.8 VCC, the transmitter can put out about 300 mW into 50 Ω. The brains of the operation is an Atmel ATtiny85 microcontroller. The way that it interacts with the transmitter is via its PWM output, which can generate a voltage from 0 V to 5 V after proper filtering. This control voltage is fed to a reversed-biased LED which acts as a varactor to tune the oscillator in very tiny amounts (< 10 Hz). The PWM output is essentially an 8-bit DAC, so not only can the varactor be flipped between 0 V and 5 V, but it can be set to many intermediate values, which allows for things like Feld Hell and just about any kind of graphic or glyph you can think of to be transmitted. The transmitter PA is also keyed with a PNP transistor which is controlled by the ATtiny85, which allows the OpenBeacon to operate in standard CW beacon mode.

The main way in which this project will meet the goals I stated above is in its user interface. There is a handy open source project called V-USB which gives USB interface capability to AVR microcontrollers that do not have USB built-in. This allows me to wire a USB port to the ATtiny85 and have the V-USB firmware take care of all the ugly business behind the scenes so that I can focus on interfacing the OpenBeacon to a PC. With a simple command line program, the user will have the ability to switch between the many operating modes available, set his own callsign and beacon message without having to have the microcontroller programmed for him, upload custom glyphs to be transmitter, and monitor the status of the beacon. No need to mess with jumpers or in-circuit programmers (although the ISP port will be available for those who want to hack their OpenBeacon). The client program is written in C and should be able to be compiled for Linux, Windows, and OS X machines.

KI6FEN Grabber Capture

KI6FEN Grabber Capture

Right now, the prototype is pretty much complete save a few minor tweaks. Yesterday, I got the code for the CW modes completed and put the beacon on the air in DFCW 6 second dit mode just above 10.140010 MHz. Conditions weren't great, but I did manage to get a few weak captures on the KL7UK grabber and one from KI6FEN via Twitter. The signal was way too wide and extremely drifty, but I've solved those problems by changing the coupling capacitor between the LED varactor and the oscillator and by creating a rudimentary thermal chamber for the beacon out of pink antistatic foam. I'll be leaving the beacon on for the next few days when I'm not working on the project (which will be most of the day). Any reception reports would be greatly appreciated!

So the plan is to get the CC-Series PCB revisions hopefully done by next weekend so that they can be sent off to the board house before their vacation is over. In my little bits of downtime, I'll continue work on the code for the OpenBeacon. The plan for this project is to get the PCBs cranked out very quickly. Now that I'm familiar with Kicad, I think it won't be too difficult or take too long to design the boards. I'm also going to be trying out a new PCB vendor which promises much cheaper prices and faster turnaround times on smaller boards such as this. With any luck, I can fast-track OpenBeacon testing and production and have it out while the CC-Series is in it's final beta test. Stay tuned, this is make-or-break time!

SOTA Fail on Clatskanie Mountain

5 Replies

PC030148.JPG This post is a bit late, but I wanted to be sure to document my first attempt at a SOTA activation and what I learned from it. The title is probably a bit harsh, but the eternal pessimist in me couldn't help it. I decided to attempt a SOTA activation after seeing a lot of increased activity from my esteemed ham colleagues such as KK7DS, KD0BIK, and of course the guy who probably introduced most of us Americans to the activity: WG0AT. I've always loved outdoor hikes and have done my share of outdoor operating from parks and campgrounds, so the idea of packing a portable station up to the top of a local peak has been sounding appealing for quite a while now.

The plan was put together with much haste, as I wanted to get up in the mountains before any bad storms hit. I used the tools at SOTAWatch to find some candidate peaks that were within reasonable driving distance and not very high, then digitally scouted them using Google Earth. The initial research yielded a list of about 5 candidate peaks which fit my criteria. After more studying, I decided to try for Clatskanie Moutain W7/NC-039. It's roughly 60 miles from my house, which translates to a one-way drive time of about 1.5 hours. The logging road from the highway to the peak was only about 3 miles, and it looked like I could drive all the way to the peak if I wanted to. The plan that I had in mind was to park at the cutoff to the little spur road that branched off to the peak. The distance from this intersection to the peak is only about 500 meters, an easy hike, but one that would fit within the spirit of the SOTA rules.

After deciding on a peak, I managed to rope Dave W8NF into going on the trip with me, a decision that I would be very grateful for later. Since I recently sold my FT-817, the only portable radio that I currently have is my CC-20 beta unit, and it was in a bit of a torn-up state since I've been making corrections that will be implemented in the final version. I also wanted to do some 10 meter operation, so I thought it would be fun to slap together a VXO-tuned DSB rig that might allow me to snag a few voice QSOs. Without getting into the painful details, I worked furiously to build the DSB rig and get the CC-20 back into working condition (without a proper enclosure!). In a homage to my school days, I didn't finish until late night just before the day we were to go on our little expedition, and even then I wasn't sure that my 10 meter DSB rig was working correctly.


So the designated day, Saturday, 3 December came around and I was running on about four hours of sleep, but still excited to get up around 8 AM to get going. By 9:30 AM, I was out the door, able to grab my coffee, and get to Dave's house. We quickly made way to the peak, and had little difficulty finding the logging road off of the highway that would take us up to the peak. There was only one small problem. The gate was locked. I should have done better due diligence (such as experienced SOTA expeditioner KK7DS explains here) and picked up a proper topo map from the local forestry office. I was planning on a short hike to the peak, but I really didn't want to turn around and drive back 1.5 hours having not even tried. I knew we were about 3 miles from the peak, which was a bit of a hike for some one as out of conditioning as me, but I felt I could probably hack it. Graciously, Dave agreed to hike it, so we grabbed our packs and I lugged the bulky, oversized sack with the Buddipole and we made way for Clatskanie Mountain. Fortunately for us, the weather couldn't be any better for a December trek in the Oregon Coastal Range. The skies were mostly clear, with just a bit of high clouds and some patches of fog below us.

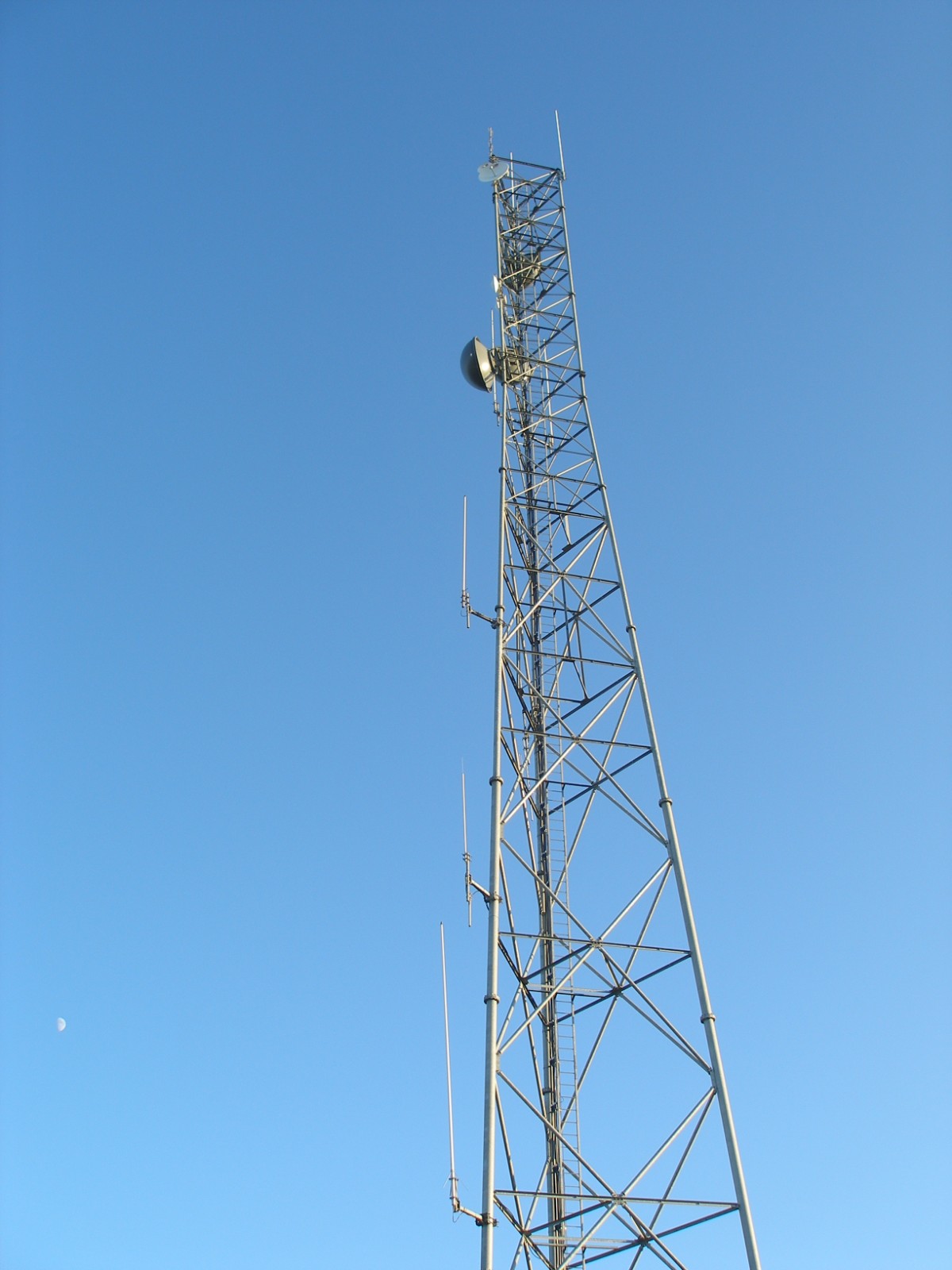

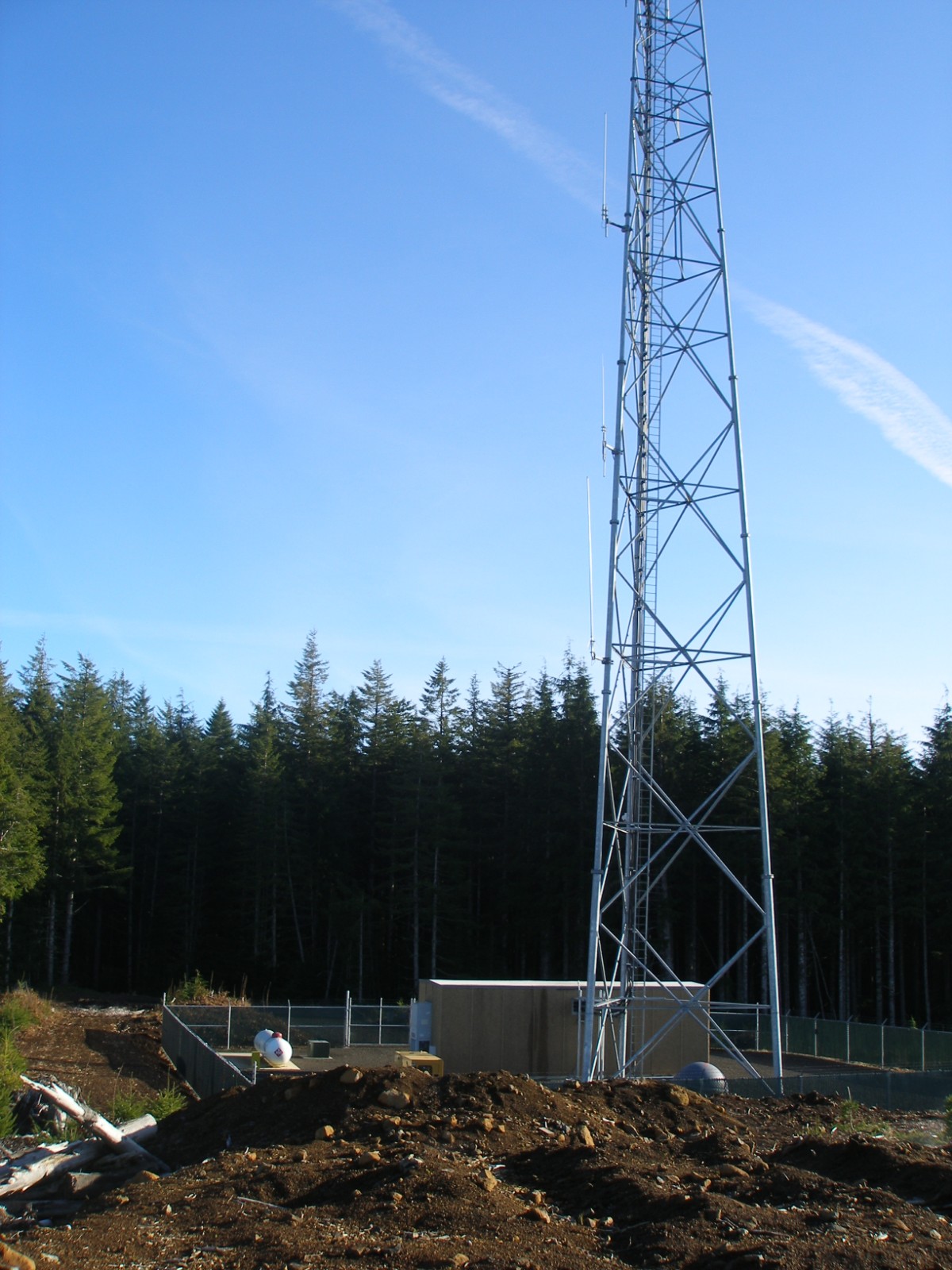

PC030160.JPGWe had a pleasant hike up to the peak, and while I (the guy who is mostly sedentary and fat) had to stop for frequent breathers, Dave (the guy who runs half-marathons) didn't seem to have too much difficulty with the 3 mile hike and 700 foot elevation gain. When we reached the peak at sometime around 1:30 PM, we were greeted with a very spiffy microwave tower and wonderful view of the Columbia River below us to the north. The temperature was chilly (I'm guessing around 35° F) but the wind was slight.

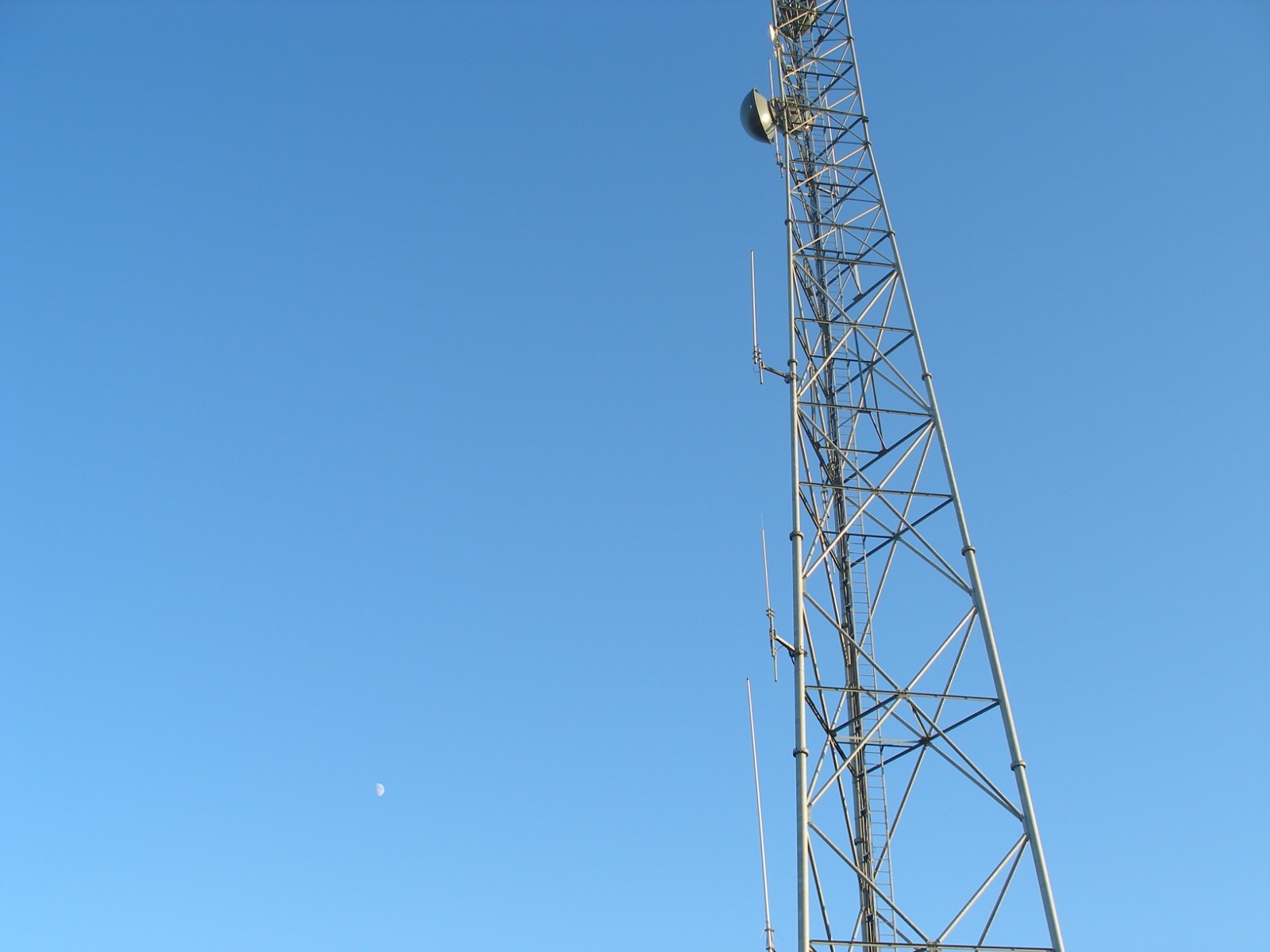

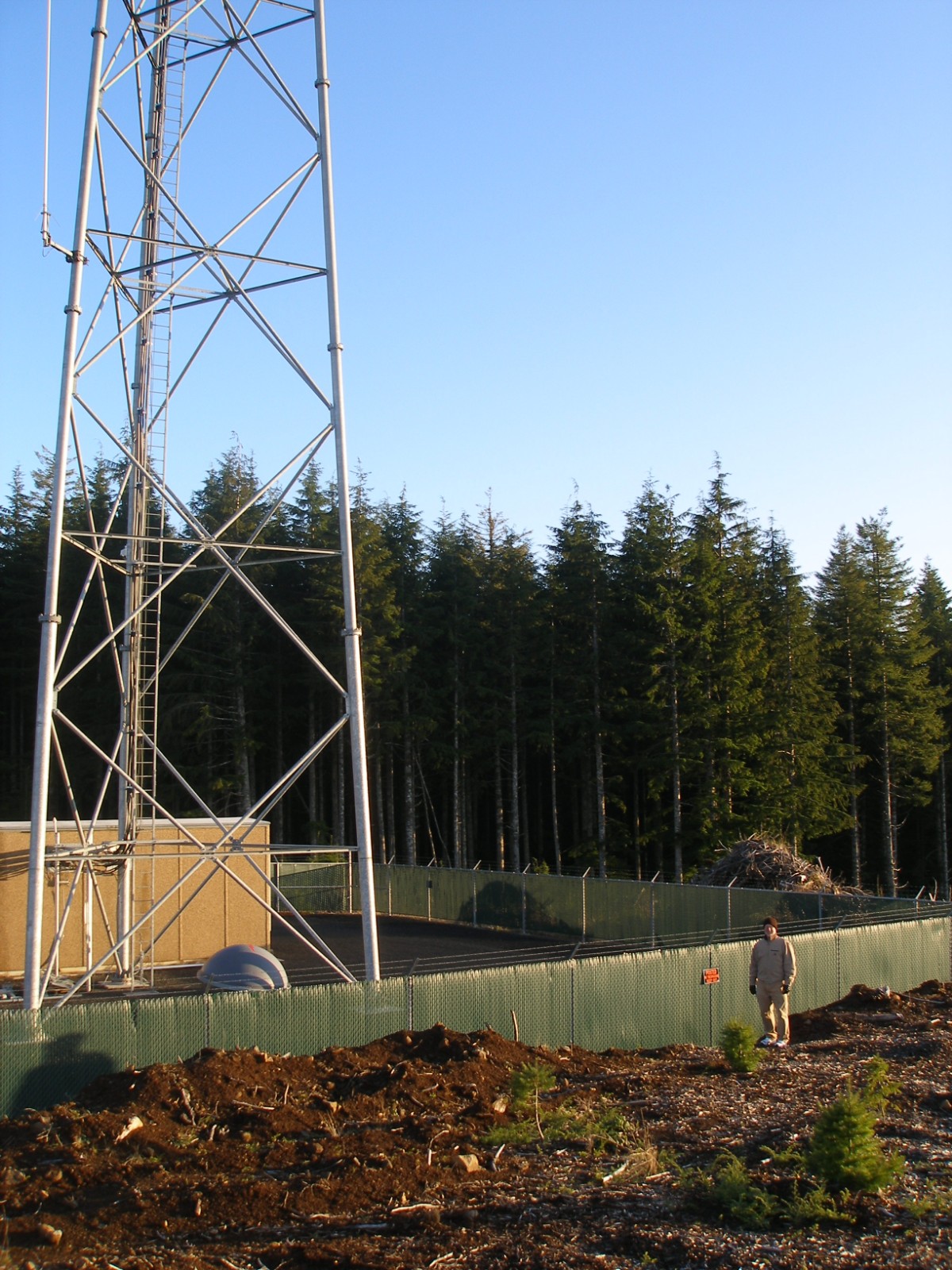

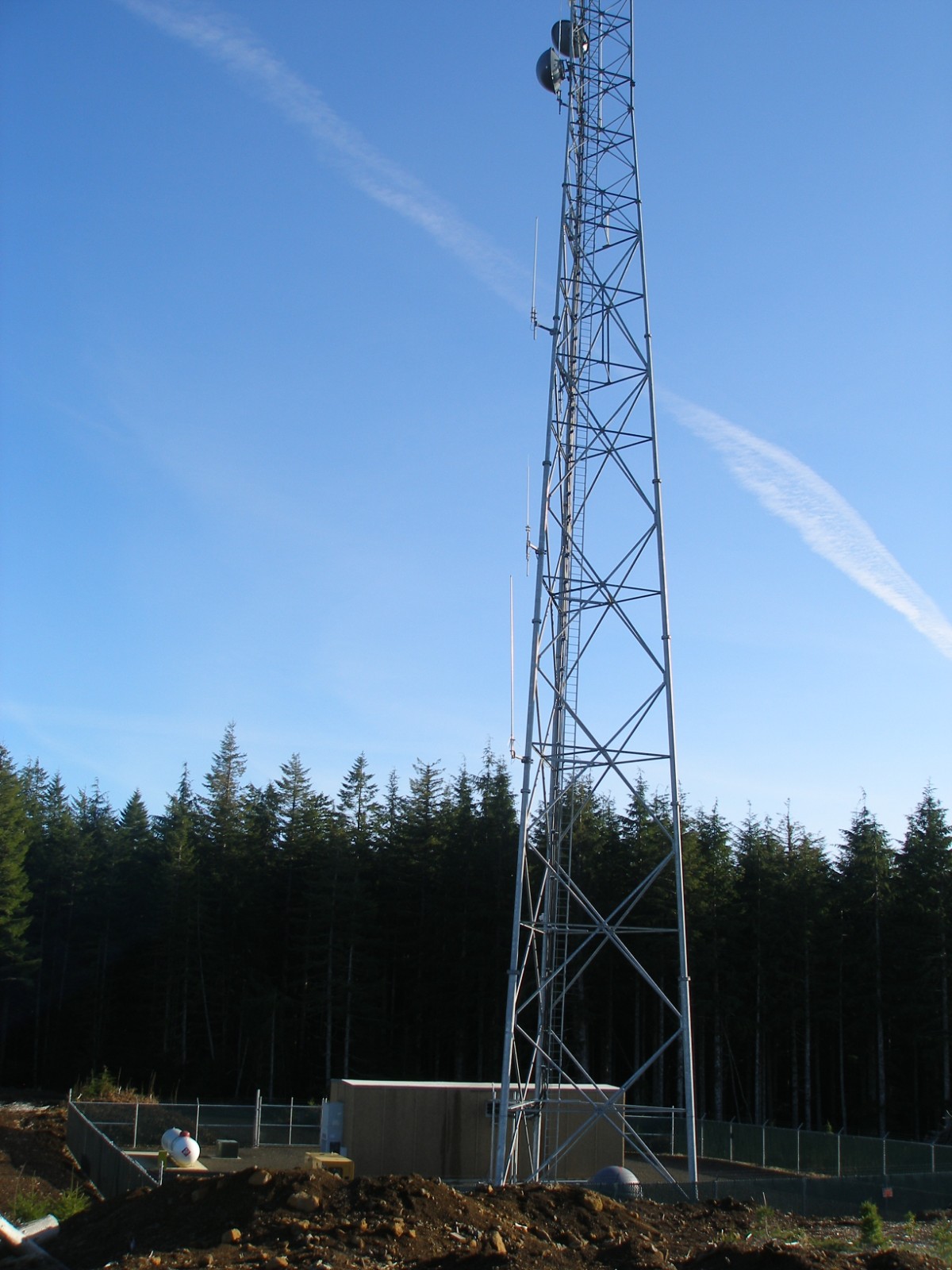

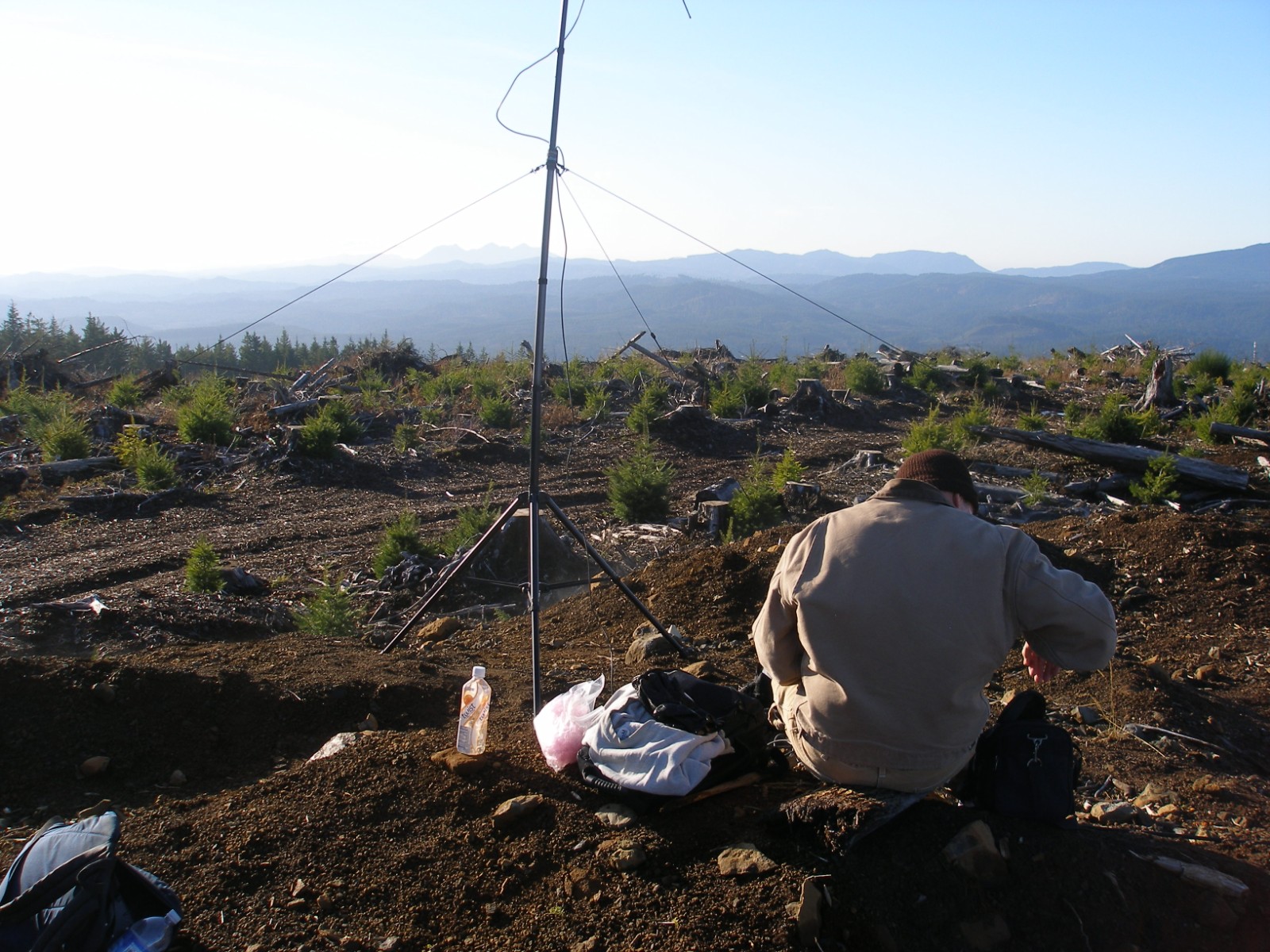

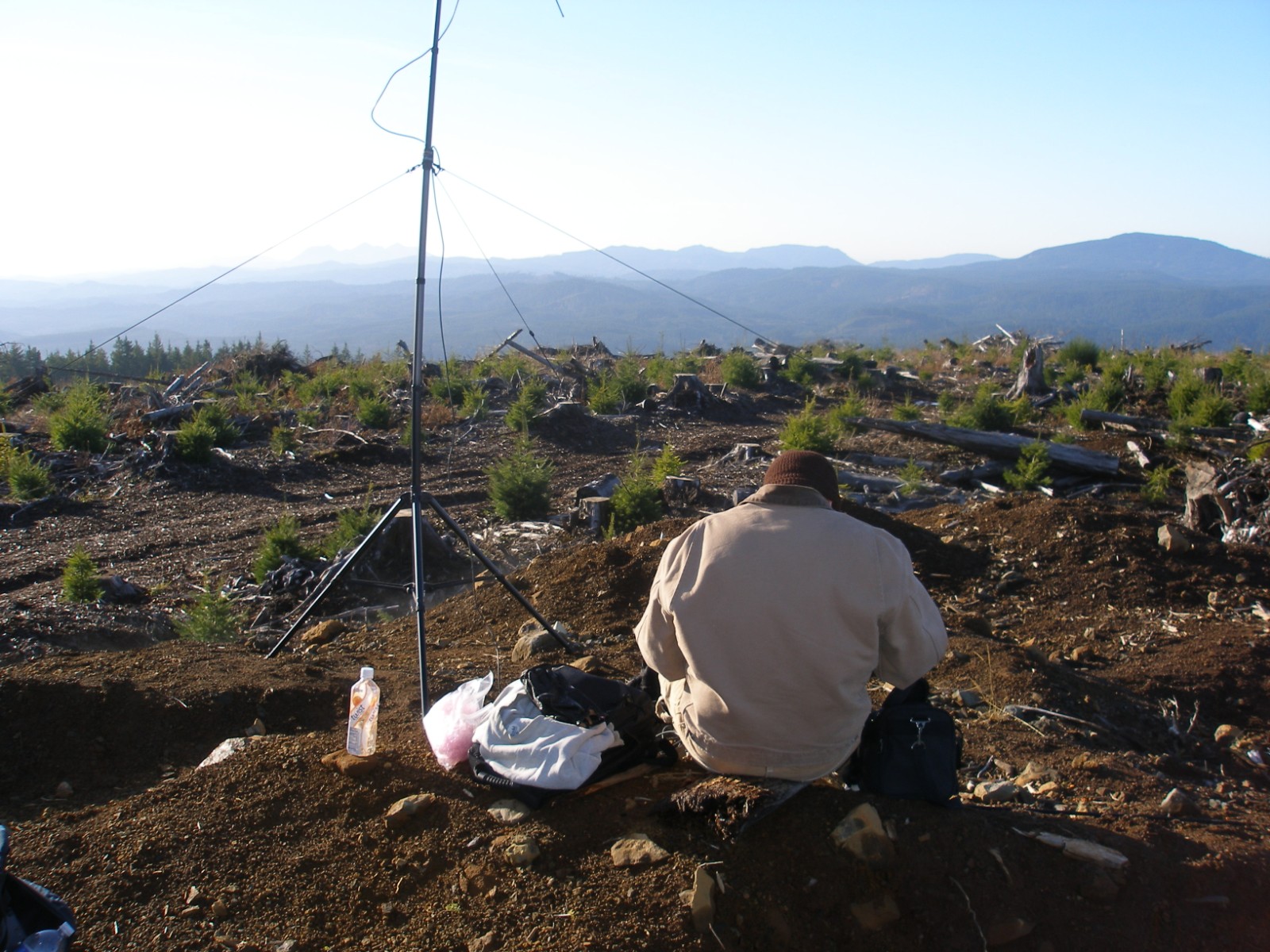

There was a large earthen berm behind the microwave facility that gave us a point to operate with the mountain sloping away west, north, and east. I brought along my EFHW antennas, but decided not to deploy them at first since there weren't any trees at this location. I deployed the Buddipole in L-configuration with Dave's help and he broke out his FT-817 and started listening on 10 meters. As expected, the bands were ultra quiet up here far away from any big RF noise generators (save that big microwave tower right behind us!).

PC030156.JPG While Dave sent out some CQs on 28.060 MHz, I unpacked my DSB radio and the CC-20 beta. Dave didn't have any luck getting responses, which struck me as a bit odd. We could hear plenty of signals, and we had his Elecraft T-1 in-line and tuned-up. So I decided to try the DSB radio. A few quick cable changes and it was ready to go. Only one small problem. It was completely deaf. Well, that's what I get for trying to get a radio on the air in such a hasty fashion. I felt bad because I knew that there were people listening for me on my pre-spotted frequency of 28.650 MHz, but somewhat surprisingly I was wasn't successful in getting cell service on the peak, so I couldn't spot a new notification. Sometime around these events, the wind started picking up, making the temperature feel wicked cold with the wind chill factor.

So next up was the CC-20. Again, dead as a doornail (I later found out that it was a bad solder joint in the VFO circuitry that popped loose on the hike). Dave was kind enough to let me use his FT-817 to try to get my four required QSOs to count for a proper SOTA activation. The 10 meter QRP watering hole was awfully quiet, but I figured that some CQing should bring people out. Turns out that I didn't have much luck. I managed to work a weak WA8REI, then a booming JA1KGW (this guy is an awesome QRPer). By this time, both Dave and I were getting awfully cold. The wind seemed to be getting stronger and the temperature felt like it kept dropping. My further CQs were going unanswered, so I thought that 10 meters might be starting to close up and that we should move to 20.

We quickly re-resonated the Buddipole for 20 meters and re-tuned the T-1. I tried calling CQ on a few different frequencies near the QRP watering hole, but never did get any calls on 20 meters. I'm not sure how long I tried calling, but I didn't have a memory keyer to use, so I was manually sending the CQ each time, and it was getting sloppier and sloppier due to my numb hands. Poor Dave was pacing around to keep warm by this point. As much as it killed me to leave before activating the summit, we we both very uncomfortable and needed to leave soon regardless, because we only had about 1.5 hours of sunlight left at this point.

PC030146.JPGAll of our stuff got packed up in record time and we started downhill at a brisk pace. But only a few hundred meters from the peak, my leg started cramping up bad from the cold weather. A bit of stretching worked it out, but then it kept recurring every few hundred meters! We both wanted to get back to the warmth of my pickup as fast as possible, but my leg was not cooperating very well. Dave patiently waited as I stopped each time to try to work out the leg cramps. Although it took longer than expected, we did reach the gate right when the dark was really starting to set in. Getting back in the truck and heating up my body mercifully ended the awful leg cramps.

I'm a perfectionist by nature, so it still bothers me that I didn't get my activation of Clataskanie Mountain. And it's tough to try to demonstrate the fun and effectiveness of QRP to a non-QRPer like  Dave when you have such a lousy radio day as I did. I am very glad that Dave was there, as I might have stayed on the peak too late to get back before dark if I was only thinking of myself and of trying to complete my activation. I also realized that a nearly 7 mile round trip hike for a unconditioned hiker such as myself would have been incredibly foolish. If my leg cramps had been worse, I could have been stuck up there in the dark over night. I used to hike like this with no problems, but I have to remind myself that this was 10+ years ago and that I was in much better shape then.

It's a cliché, but I did learn a lot from the trip, regardless of the radio results. I do intend to try it again in the spring, once the bad winter storms have passed and I have my radios really ready to go. Stay tuned for further adventures!
